Trencher · Bias

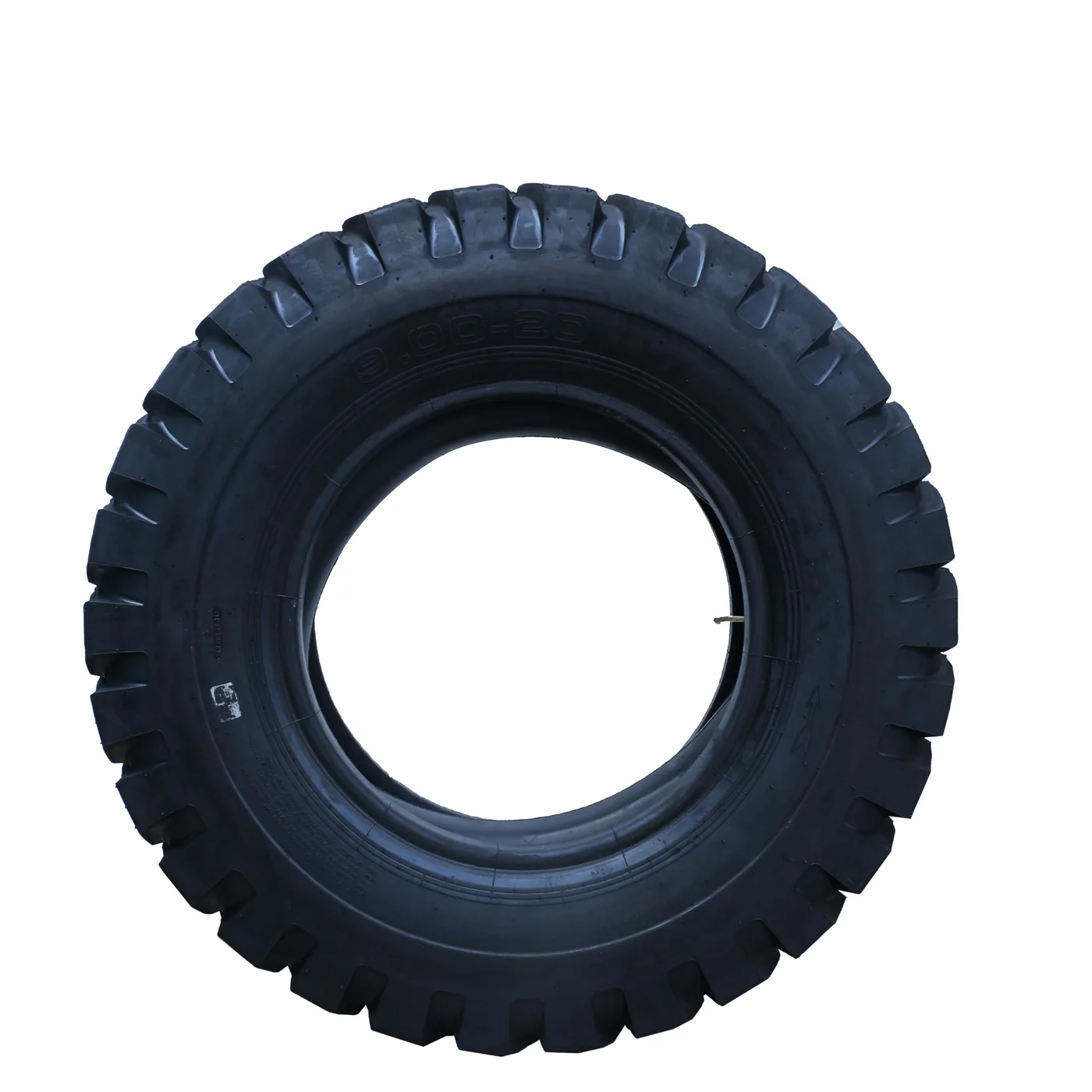

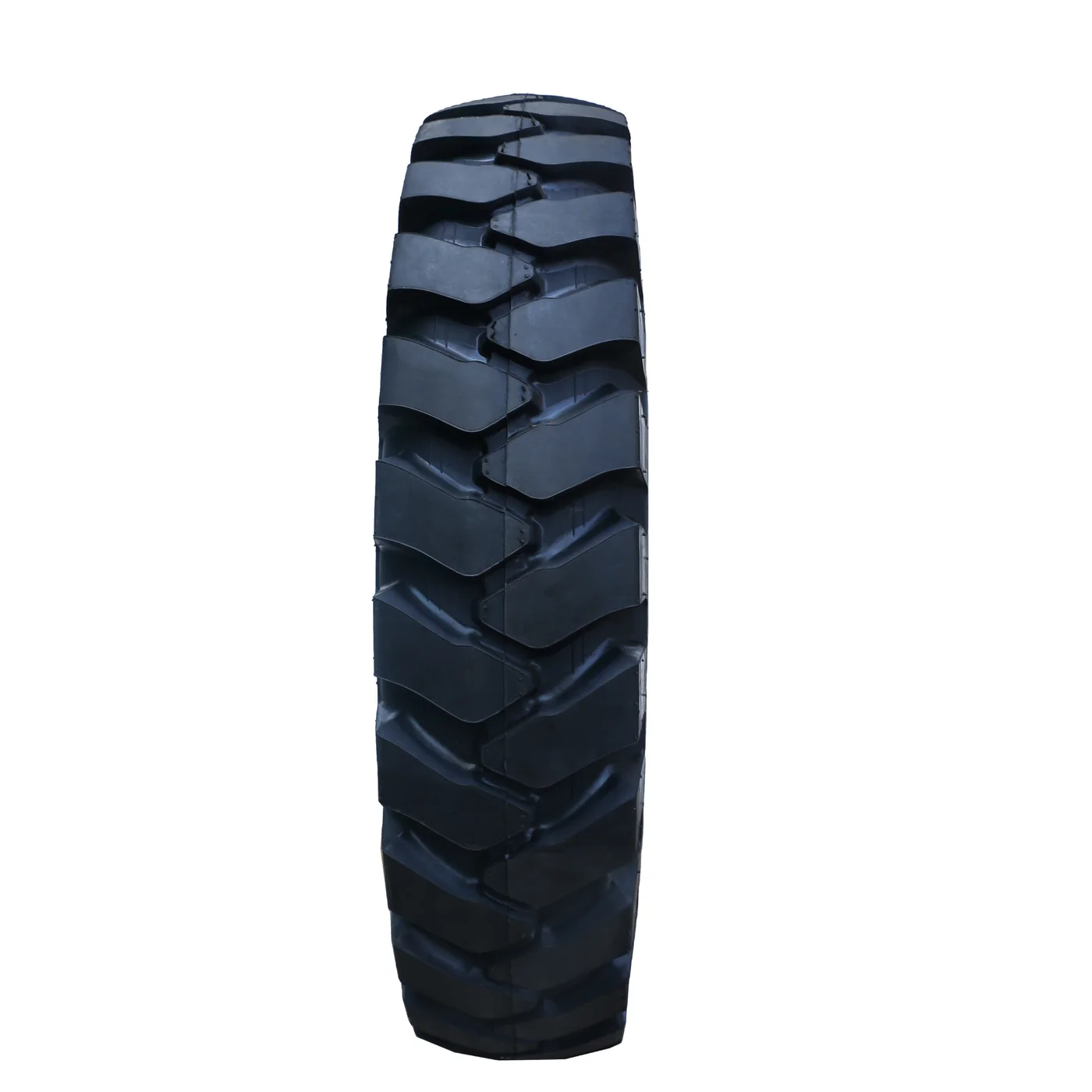

STS300 Trencher Tyre
STS300 Trencher Tyre range for trencher and utility construction applications. Selection must be confirmed against load, speed, duty cycle and site conditions.
Series overview
STS300 Trencher Tyre application and fit
This bias OTR tyre range is catalogued for trencher and utility-construction work. The current range focuses on 9.00-20 and 10.00-20 trencher and utility-construction fitment. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.
What the STS300 designation tells buyers
The STS300 designation identifies the STS300 special-purpose tread pattern. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.
Operating conditions to confirm
For this range, document site access, trench alignment and mixed construction surfaces. JABIL uses those inputs to confirm trencher model, driven position, working speed and site surface. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.
Technical data
STS300 Trencher Tyre available configurations
Blank values require technical confirmation. Load and pressure values are shown at their stated speeds and must not be interchanged.
| Size | PR | Standard rim | OD mm | Width mm | Load 10 km/h kg | Load 50 km/h kg | Pressure 10 km/h kPa | 40HQ pcs |
|---|---|---|---|---|---|---|---|---|
| 9.00-20 | 14 | 7 | 1015 | 255 | 4375 | — | 725 | 310 |
| 10.00-20 | 16 | 7.5 | 1015 | 275 | 4950 | — | 725 | 270 |
Buyer questions
Frequently asked questions about STS300 Trencher Tyre
What equipment is the STS300 Trencher Tyre intended for?
The catalogue associates this tyre with Trencher and Utility construction. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.
Which sizes are listed for the STS300 Trencher Tyre?
The current catalogue lists 9.00-20, 10.00-20. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.
What does STS300 mean on this page?
STS300 identifies the STS300 special-purpose tread pattern. It is a starting point; it does not replace machine and duty-cycle verification.
What information is needed to request a quotation?
Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
For a worked example of the data required before quotation, read the 29.5-25 mining tyre selection guide →
