Mining · Radial

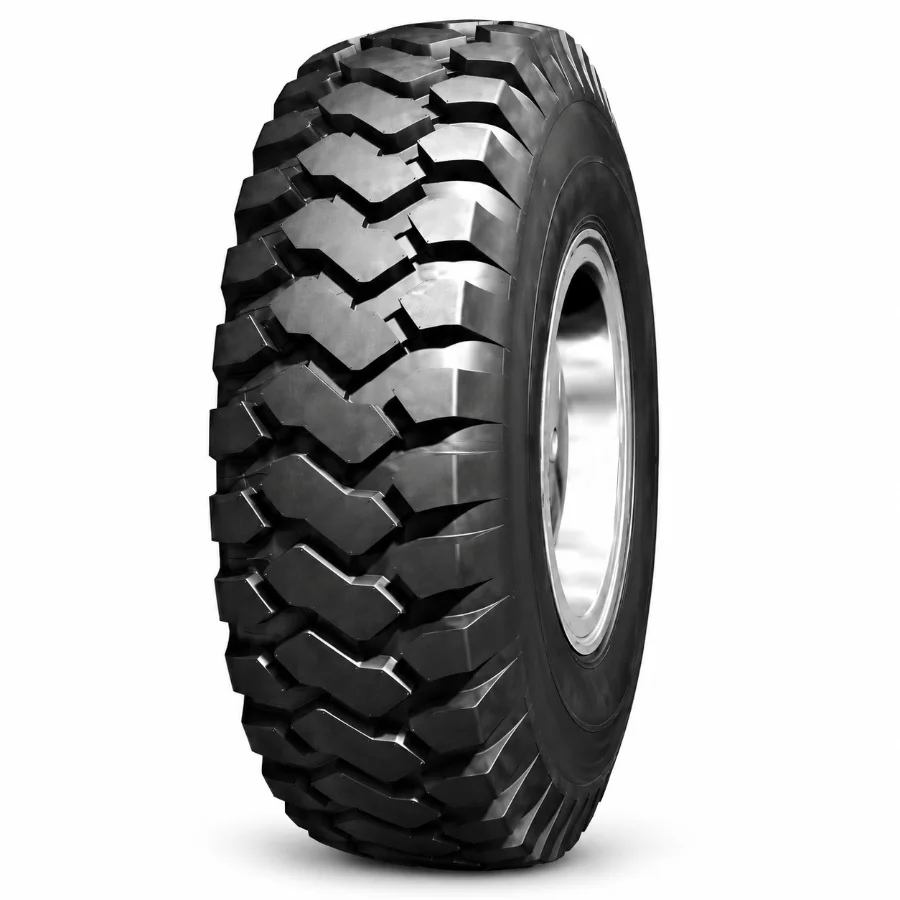

Radial E-4 Mining & Quarry Tyre

Non-directional deep-tread radial E-4 tyre for muddy and soft surfaces in mining, quarry and construction applications.

Last reviewed: October 2026

E-44 sizes7 configurations

Series overview

Radial E-4 Mining & Quarry Tyre application and fit

This radial OTR tyre range is catalogued for mining and heavy earthmoving duty. The current range focuses on mining applications. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.

What the E-4 designation tells buyers

The E-4 designation identifies the earthmover or mining tread family recorded in the catalogue. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.

Operating conditions to confirm

For this range, document haul-road surface, gradients, rock exposure and cycle heat. JABIL uses those inputs to review load, maximum speed, one-way haul distance, cycle time and common tyre failures. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.

Priority range guidance

Radial E-4 selection across mining and quarry sizes

This radial E-4 family covers seven catalogue configurations from 12.00R24 to 24.00R35 for rigid dump trucks and loaders. The 12.00R24 group is recorded as three-star TT with 31.5 mm tread, while the larger 18.00R33, 21.00R33 and 24.00R35 rows use different star ratings, rims, dimensions and load indexes. They must be reviewed as separate fitments.

Use this range when the documented duty includes deep-tread E-4 service on mining, quarry or construction routes. For a rigid truck, provide payload, axle distribution, loaded and empty speed, one-way distance, gradients and cycle time. For a loader, add tyre position, turning frequency and time spent travelling versus loading.

The dominant risks can change from cuts and impact on sharp rock to heat on sustained travel or irregular wear on poorly maintained roads. A deeper code does not remove the need to check load/speed limits and inflation. Compare the exact catalogue row, then verify rim, clearance and the manufacturer's application limit before quotation.

Compare related E-2 ranges: radial E-3/L-3 range · E-4 severe-rock range

Technical data

Radial E-4 Mining & Quarry Tyre available configurations

TBC means the value is not present in the current source catalogue and must be verified before quotation. Load and pressure values are shown only at their stated speeds and must not be interchanged.

SizeStar ratingTypeTRA codeStandard rimTread depth mmLoad indexWidth mmOD mmMax load / pressure by speed
12.00R24★★★TTE-48.531.5164/162B315124550 km/h single: 5000 kg / 900 kPa; 10 km/h dual: 4750 kg / 900 kPa
12.00R24★★★TTE-48.531.5164/162E315124550 km/h single: 5000 kg / 900 kPa; 10 km/h dual: 4750 kg / 900 kPa
12.00R24★★★TTE-48.531.5164/162F315124550 km/h single: 5000 kg / 900 kPa; 10 km/h dual: 4750 kg / 900 kPa
18.00R33★★TLE-413.00/2.554191B/209A2500187550 km/h: 10900 kg / 700 kPa
21.00R33★★TT/TLE-415.00/3.054200B570195550 km/h: 14000 kg / 650 kPa
24.00R35★★TLE-417.00/3.563209B/227A2655217550 km/h: 18500 kg / 700 kPa
24.00R35★★★TLE-417.00/3.563214B655217550 km/h: 21200 kg / 900 kPa

Catalogue evidence

Verified range data for E-4

These statements use only the published product dataset; final machine fitment still requires technical confirmation.

RANGE IDENTITY

Construction and scope

E-4 is listed as a radial E-4 range with 4 sizes and 7 recorded configurations.

APPLICATION DATA

Equipment context

The catalogue associates this range with Rigid dump truck, Loader. Its current site filters place it under mining, quarry, construction conditions.

REPRESENTATIVE DATA

Recorded configurations

12.00R24: 3-star, rim 8.5, 1245 mm overall diameter, 315 mm section width. 24.00R35: 3-star, rim 17.00/3.5, 2175 mm overall diameter, 655 mm section width.

Buyer questions

Frequently asked questions about Radial E-4 Mining & Quarry Tyre

What equipment is the Radial E-4 Mining & Quarry Tyre intended for?

The catalogue associates this tyre with Rigid dump truck and Loader. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.

Which sizes are listed for the Radial E-4 Mining & Quarry Tyre?

The current catalogue lists 12.00R24, 18.00R33, 21.00R33, 24.00R35. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.

What does E-4 mean on this page?

E-4 identifies the earthmover or mining tread family recorded in the catalogue. It is a starting point; it does not replace machine and duty-cycle verification.

What information is needed to request a quotation?

Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
