Mining · Radial

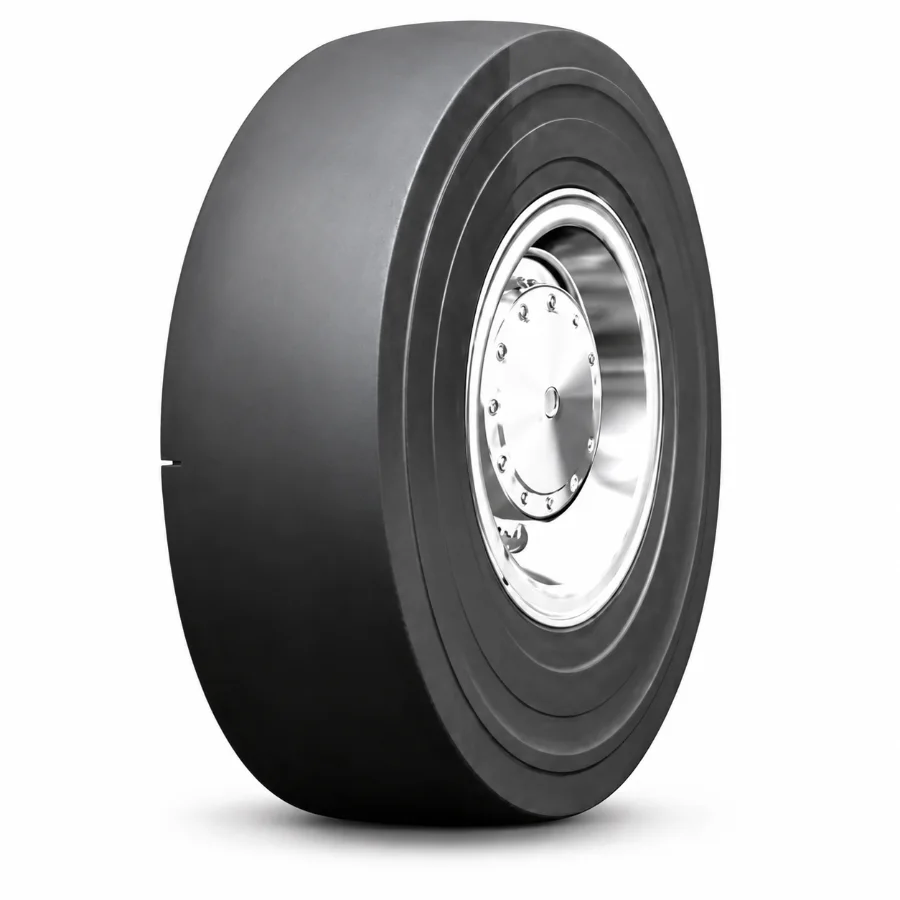

Radial L-5S Smooth Extra Deep Tread Tyre
Smooth extra-deep radial L-5S tyre for underground mine alleys, tunnels and other cut-intensive severe conditions.
Series overview
Radial L-5S Smooth Extra Deep Tread Tyre application and fit
This radial OTR tyre range is catalogued for mining and heavy earthmoving duty. The current range focuses on mining applications. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.
What the L-5S designation tells buyers
The L-5S designation identifies the earthmover or mining tread family recorded in the catalogue. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.
Operating conditions to confirm
For this range, document haul-road surface, gradients, rock exposure and cycle heat. JABIL uses those inputs to review load, maximum speed, one-way haul distance, cycle time and common tyre failures. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.
Technical data
Radial L-5S Smooth Extra Deep Tread Tyre available configurations
Blank values require technical confirmation. Load and pressure values are shown at their stated speeds and must not be interchanged.
| Size | Star rating | Type | TRA code | Standard rim | Tread depth mm | Load index | Width mm | OD mm | Max load / pressure by speed |
|---|---|---|---|---|---|---|---|---|---|
| 12.00R24 | ★★★ | TT/TL | L-5S | 8.50 | 56 | 177A2 | 315 | 1275 | 50 km/h: 7300 kg / 950 kPa |
| 14.00R24 | ★★★ | TT/TL | L-5S | 10.00W | 56 | 188A2 | 375 | 1418 | 50 km/h: 10000 kg / 950 kPa |
| 17.5R25 | ★★ | TT/TL | L-5S | 14.00/1.5 | 60 | 182A2 | 445 | 1399 | 50 km/h: 8500 kg / 650 kPa |
| 18.00R25 | ★★ | TL | L-5S | 13.00/2.5 | 83 | 204A2 | 498 | 1673 | 50 km/h: 16000 kg / 825 kPa |
| 23.5R25 | ★★ | TL | L-5S | 19.50/2.5 | 70 | 201A2 | 597 | 1617 | 50 km/h: 14500 kg / 650 kPa |
| 26.5R25 | ★★ | TL | L-5S | 22.00/3.0 | 85 | 209A2 | 673 | 1798 | 50 km/h: 18500 kg / 650 kPa |
| 29.5R25 | ★★ | TL | L-5S | 22.00/3.0 | 90 | 216A2 | 749 | 1921 | 50 km/h: 22400 kg / 650 kPa |
| 29.5R29 | ★★ | TL | L-5S | 25.00/3.5 | 90 | 218A2 | 749 | 2023 | 50 km/h: 23600 kg / 650 kPa |
Buyer questions
Frequently asked questions about Radial L-5S Smooth Extra Deep Tread Tyre
What equipment is the Radial L-5S Smooth Extra Deep Tread Tyre intended for?
The catalogue associates this tyre with Underground loader and Scraper and Earthmoving equipment. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.
Which sizes are listed for the Radial L-5S Smooth Extra Deep Tread Tyre?
The current catalogue lists 12.00R24, 14.00R24, 17.5R25, 18.00R25, 23.5R25, 26.5R25, 29.5R25, 29.5R29. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.
What does L-5S mean on this page?
L-5S identifies the earthmover or mining tread family recorded in the catalogue. It is a starting point; it does not replace machine and duty-cycle verification.
What information is needed to request a quotation?
Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
For a worked example of the data required before quotation, read the 29.5-25 mining tyre selection guide →
