Mining · Radial

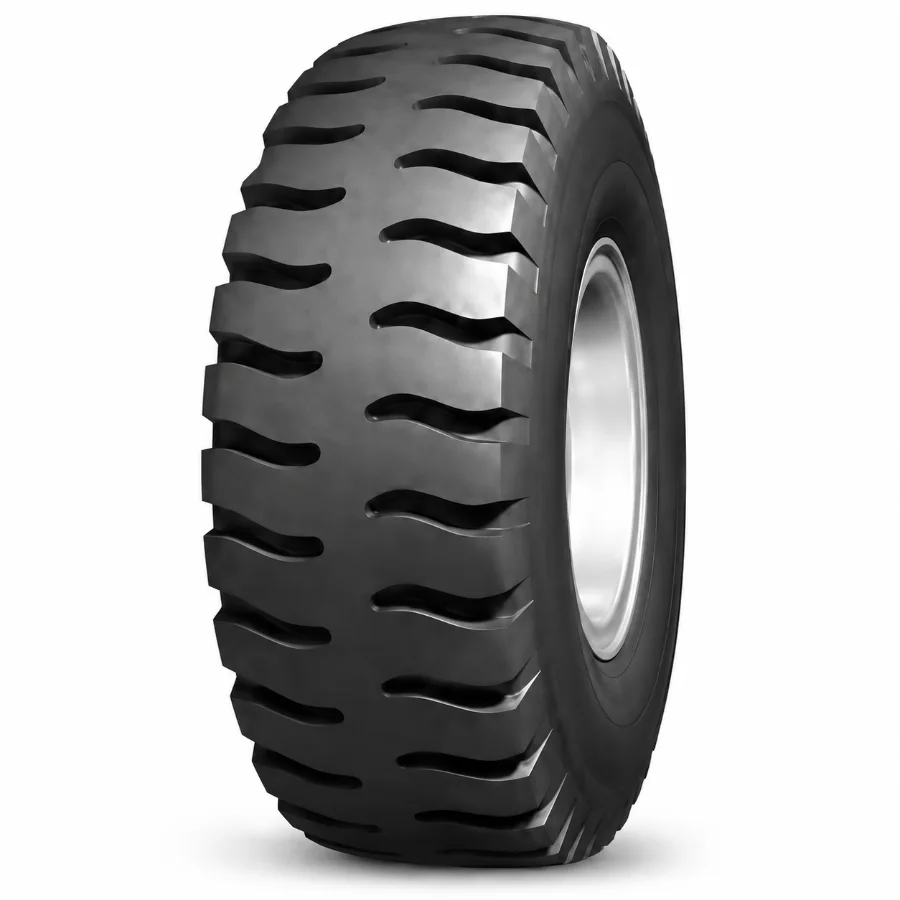

Radial E-4 Severe Rock Mining Tyre

Deep-tread radial E-4 tyre for severe rocky surfaces in underground mines, open pits and quarries.

Last reviewed: October 2026

E-43 sizes5 configurations

Series overview

Radial E-4 Severe Rock Mining Tyre application and fit

This radial OTR tyre range is catalogued for mining and heavy earthmoving duty. The current range focuses on mining applications. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.

What the E-4 designation tells buyers

The E-4 designation identifies the earthmover or mining tread family recorded in the catalogue. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.

Operating conditions to confirm

For this range, document haul-road surface, gradients, rock exposure and cycle heat. JABIL uses those inputs to review load, maximum speed, one-way haul distance, cycle time and common tyre failures. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.

Priority range guidance

Large-rim E-4 severe-rock range

This E-4 group covers 18.00R33, 21.00R35 and 24.00R35 configurations for rigid dump trucks and underground mining equipment. The published rows differ in star rating, load index and inflation data, so the complete configuration must be selected—not the size alone.

Use this page for large-rim mining and quarry enquiries where rock exposure, route severity, loaded speed and heat-producing cycle time are documented. Final fitment requires the exact truck, wheel position and rim.

Technical data

Radial E-4 Severe Rock Mining Tyre available configurations

TBC means the value is not present in the current source catalogue and must be verified before quotation. Load and pressure values are shown only at their stated speeds and must not be interchanged.

SizeStar ratingTypeTRA codeStandard rimTread depth mmLoad indexWidth mmOD mmMax load / pressure by speed
18.00R33★★TLE-413.00/2.549191B500187550 km/h: 10900 kg / 700 kPa
18.00R33★★★TLE-413.00/2.549196B500187550 km/h: 12500 kg / 900 kPa
21.00R35★★TLE-415.00/3.053201B555204050 km/h: 14500 kg / 700 kPa
24.00R35★★TLE-417.00/3.558209B655217550 km/h: 18500 kg / 700 kPa
24.00R35★★★TLE-417.00/3.558214B655217550 km/h: 21200 kg / 900 kPa

Catalogue evidence

Verified range data for E-4

These statements use only the published product dataset; final machine fitment still requires technical confirmation.

RANGE IDENTITY

Construction and scope

E-4 is listed as a radial E-4 range with 3 sizes and 5 recorded configurations.

APPLICATION DATA

Equipment context

The catalogue associates this range with Rigid dump truck, Underground mining equipment. Its current site filters place it under mining, quarry conditions.

REPRESENTATIVE DATA

Recorded configurations

18.00R33: 2-star, rim 13.00/2.5, 1875 mm overall diameter, 500 mm section width. 24.00R35: 3-star, rim 17.00/3.5, 2175 mm overall diameter, 655 mm section width.

Buyer questions

Frequently asked questions about Radial E-4 Severe Rock Mining Tyre

What equipment is the Radial E-4 Severe Rock Mining Tyre intended for?

The catalogue associates this tyre with Rigid dump truck and Underground mining equipment. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.

Which sizes are listed for the Radial E-4 Severe Rock Mining Tyre?

The current catalogue lists 18.00R33, 21.00R35, 24.00R35. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.

What does E-4 mean on this page?

E-4 identifies the earthmover or mining tread family recorded in the catalogue. It is a starting point; it does not replace machine and duty-cycle verification.

What information is needed to request a quotation?

Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
