Earthmoving · Radial

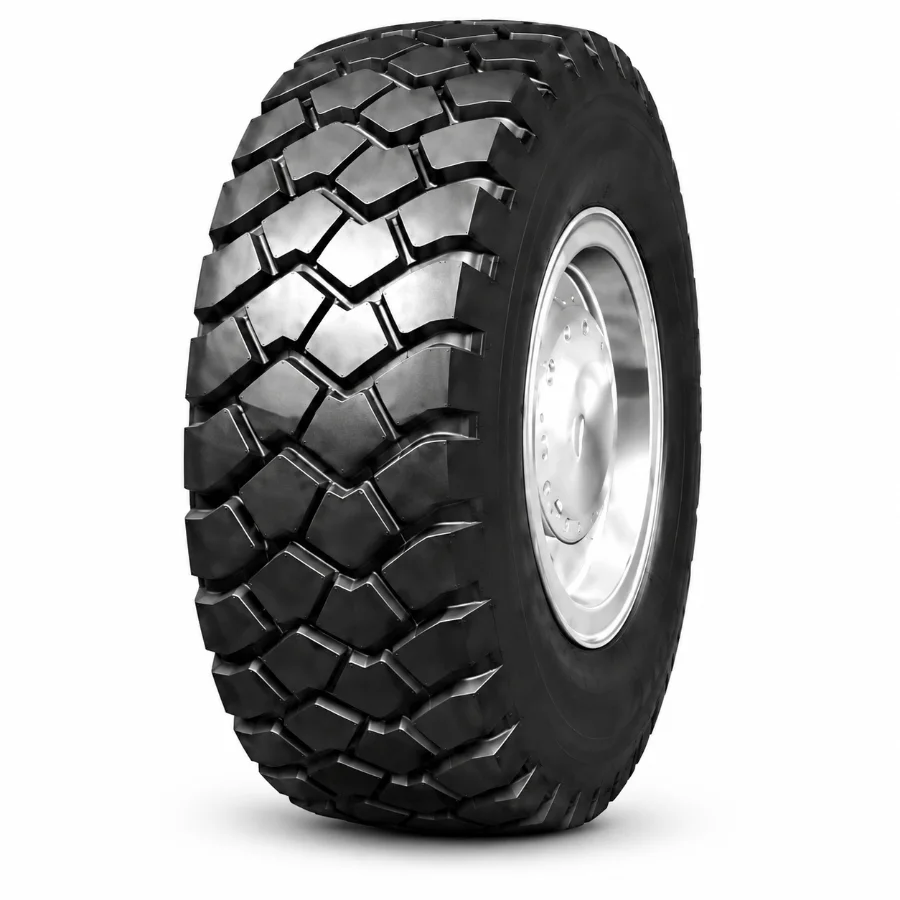

Radial Multi-Service Earthmoving Tyre

Multi-service radial earthmoving tyre range for quarry, mining and construction, with E3/L3 and E4/L4 tread-depth options.

Last reviewed: October 2026

E3/L3/E4/L48 sizes16 configurations

Series overview

Radial Multi-Service Earthmoving Tyre application and fit

This radial OTR tyre range is catalogued for earthmoving and special off-road duty. The current range focuses on earthmoving applications. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.

What the E3/L3/E4/L4 designation tells buyers

The E3/L3/E4/L4 designation identifies the L3-G9 catalogue tread family. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.

Operating conditions to confirm

For this range, document mixed site surfaces and the machine's actual travel cycle. JABIL uses those inputs to verify machine fitment, position, load, speed and surface before selection. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.

Priority range guidance

Multi-service 16.00R25 selection

This range contains both E-3 and E-4 16.00R25 configurations alongside other earthmoving sizes. The recorded 16.00R25 rows use the same rim family but differ in tread depth and overall diameter, making the operating cycle and clearance check essential.

Use this page when a loader, rigid dump truck or construction machine needs a choice between general earthmoving and deeper-tread service. Confirm surface severity, travel distance, speed and tyre position before choosing the tread class.

Technical data

Radial Multi-Service Earthmoving Tyre available configurations

TBC means the value is not present in the current source catalogue and must be verified before quotation. Load and pressure values are shown only at their stated speeds and must not be interchanged.

SizeStar ratingTypeTRA codeStandard rimTread depth mmLoad indexWidth mmOD mmMax load / pressure by speed
13.00R25★★★TTE-38.50/1.3 10.00/1.528163B350130050 km/h GB: 4875 kg / 700 kPa
14.00R24★★★TT/TLE-310.00W30170B375136850 km/h: 6050 kg / 800 kPa; 10 km/h: 10000 kg / 1000 kPa
14.00R25★★★TT/TLE-310.00/1.5 10.00/2.030170B375136850 km/h: 6050 kg / 800 kPa; 10 km/h: 10000 kg / 1000 kPa
14.00R25★★★TT/TLE-410.00/1.5 10.00/2.036170B375136850 km/h: 6050 kg / 800 kPa; 10 km/h: 10000 kg / 1000 kPa
16.00R25★★★TTE-311.25/2.028182B/196A2432149350 km/h: 8500 kg / 900 kPa; 10 km/h: 12500 kg / 1000 kPa
16.00R25★★★TT/TLE-411.25/2.045182B/196A2432154850 km/h: 8500 kg / 900 kPa; 10 km/h: 12500 kg / 1000 kPa
18.00R25★★TT/TLE-413.00/2.547185B498167350 km/h: 9250 kg / 700 kPa
17.5R25★★TLL-314.00/1.526.5167B/182A2445134850 km/h: 5450 kg / 525 kPa; 10 km/h: 8500 kg / 650 kPa
17.5R25★★TLE-3/L-314.00/1.526.5167B/182A2445134850 km/h: 5450 kg / 525 kPa; 10 km/h: 8500 kg / 650 kPa
17.5R25★★TLE-4/L-414.00/1.537167B/182A2445134850 km/h: 5450 kg / 525 kPa; 10 km/h: 8500 kg / 650 kPa
20.5R25★★TLL-317.00/2.028.5177B/193A2521149350 km/h: 7300 kg / 525 kPa; 10 km/h: 11500 kg / 650 kPa
20.5R25★★TLE-3/L-317.00/2.028.5177B/193A2521149350 km/h: 7300 kg / 525 kPa; 10 km/h: 11500 kg / 650 kPa
20.5R25★★TLE-4/L-417.00/2.045177B/193A2521149350 km/h: 7300 kg / 525 kPa; 10 km/h: 11500 kg / 650 kPa
23.5R25★★TLL-319.5/2.532185B/201A2597161750 km/h: 9250 kg / 525 kPa; 10 km/h: 14500 kg / 650 kPa
23.5R25★★TLE-3/L-319.5/2.532185B/201A2597161750 km/h: 9250 kg / 525 kPa; 10 km/h: 14500 kg / 650 kPa
23.5R25★★TLE-4/L-419.5/2.548185B/201A2597161750 km/h: 9250 kg / 525 kPa; 10 km/h: 14500 kg / 650 kPa

Catalogue evidence

Verified range data for E3/L3/E4/L4

These statements use only the published product dataset; final machine fitment still requires technical confirmation.

RANGE IDENTITY

Construction and scope

E3/L3/E4/L4 is listed as a radial E3/L3/E4/L4 range with 8 sizes and 16 recorded configurations.

APPLICATION DATA

Equipment context

The catalogue associates this range with Loader, Rigid dump truck, Construction equipment. Its current site filters place it under earthmoving, construction, mining, quarry conditions.

REPRESENTATIVE DATA

Recorded configurations

13.00R25: 3-star, rim 8.50/1.3 10.00/1.5, 1300 mm overall diameter, 350 mm section width. 23.5R25: 2-star, rim 19.5/2.5, 1617 mm overall diameter, 597 mm section width.

Buyer questions

Frequently asked questions about Radial Multi-Service Earthmoving Tyre

What equipment is the Radial Multi-Service Earthmoving Tyre intended for?

The catalogue associates this tyre with Loader and Rigid dump truck and Construction equipment. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.

Which sizes are listed for the Radial Multi-Service Earthmoving Tyre?

The current catalogue lists 13.00R25, 14.00R24, 14.00R25, 16.00R25, 18.00R25, 17.5R25, 20.5R25, 23.5R25. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.

What does E3/L3/E4/L4 mean on this page?

E3/L3/E4/L4 identifies the L3-G9 catalogue tread family. It is a starting point; it does not replace machine and duty-cycle verification.

What information is needed to request a quotation?

Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
