Construction and scope
E-4 is listed as a radial E-4 range with 4 sizes and 4 recorded configurations.
Mining · Radial

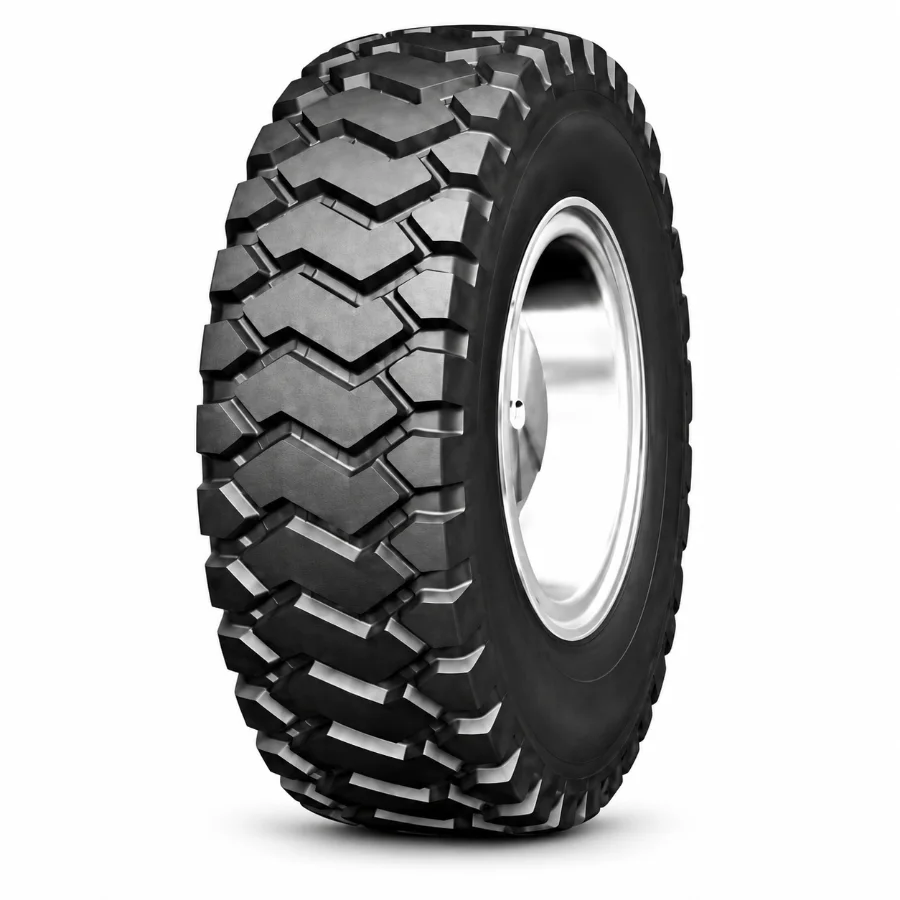

Radial E-4 tyre with traction and self-cleaning performance for mining, quarry and off-road service.
Last reviewed: October 2026

Series overview
This radial OTR tyre range is catalogued for mining and heavy earthmoving duty. The current range focuses on mining applications. Selection starts with the listed size and pattern, then requires a check of the actual machine and operating cycle.
The E-4 designation identifies the earthmover or mining tread family recorded in the catalogue. Compare it with the present tyre marking and equipment requirement. A matching code or size alone does not confirm fitment, load capacity or expected service life.
For this range, document haul-road surface, gradients, rock exposure and cycle heat. JABIL uses those inputs to review load, maximum speed, one-way haul distance, cycle time and common tyre failures. Current tyre photos and a description of cuts, heat, wear or other failures help focus the review.
Technical data
TBC means the value is not present in the current source catalogue and must be verified before quotation. Load and pressure values are shown only at their stated speeds and must not be interchanged.
| Size | Star rating | Type | TRA code | Standard rim | Tread depth mm | Load index | Width mm | OD mm | Max load / pressure by speed |
|---|---|---|---|---|---|---|---|---|---|
| 14.00R24 | ★★★ | TT/TL | E-4 | 10.00W | 36 | 170B | 375 | 1418 | 50 km/h: 6050 kg / 800 kPa |
| 14.00R25 | ★★★ | TT | E-4 | 10.00/2.0 | 36 | 170B | 375 | 1418 | 50 km/h: 6050 kg / 800 kPa |
| 16.00R25 | ★★★ | TT/TL | E-4 | 11.25/2.0 | 43 | 182B/196A2 | 432 | 1548 | 50 km/h: 8500 kg / 900 kPa; 10 km/h: 12500 kg / 1000 kPa |
| 26.5R25 | ★★ | TL | E-3/L-3 | 22.00/3.0 | 36 | 193B/209A2 | 673 | 1750 | 50 km/h: 11500 kg / 525 kPa; 10 km/h: 18500 kg / 650 kPa |
Catalogue evidence
These statements use only the published product dataset; final machine fitment still requires technical confirmation.
E-4 is listed as a radial E-4 range with 4 sizes and 4 recorded configurations.
The catalogue associates this range with Loader, Rigid dump truck, Dozer. Its current site filters place it under mining, quarry, earthmoving conditions.
14.00R24: 3-star, rim 10.00W, 1418 mm overall diameter, 375 mm section width. 26.5R25: 2-star, rim 22.00/3.0, 1750 mm overall diameter, 673 mm section width.
Buyer questions
The catalogue associates this tyre with Loader and Rigid dump truck and Dozer. Final suitability depends on the machine model, tyre position, load, speed, rim and operating conditions.
The current catalogue lists 14.00R24, 14.00R25, 16.00R25, 26.5R25. Use the technical table to compare PR, standard rim, dimensions, load, pressure and container quantity where verified.
E-4 identifies the earthmover or mining tread family recorded in the catalogue. It is a starting point; it does not replace machine and duty-cycle verification.
Provide the tyre size, machine model, tyre position, load, maximum speed, daily hours, haul distance or cycle time, road condition, current failure mode, quantity and destination.
